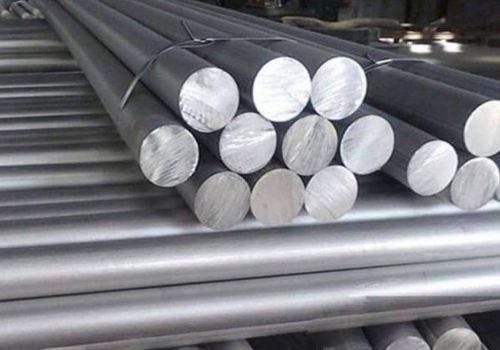

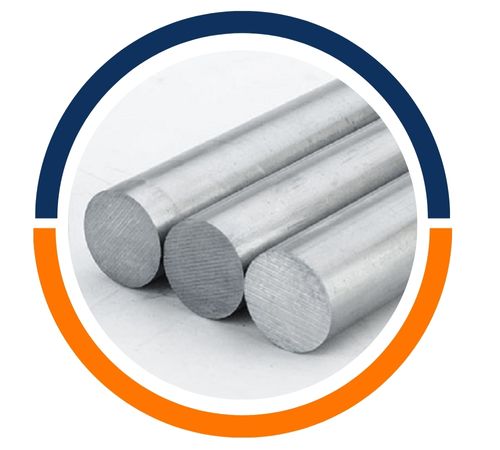

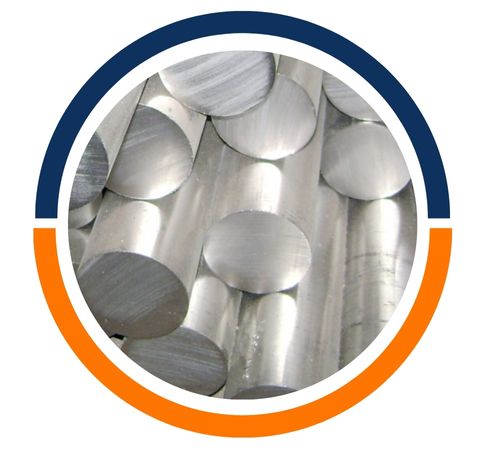

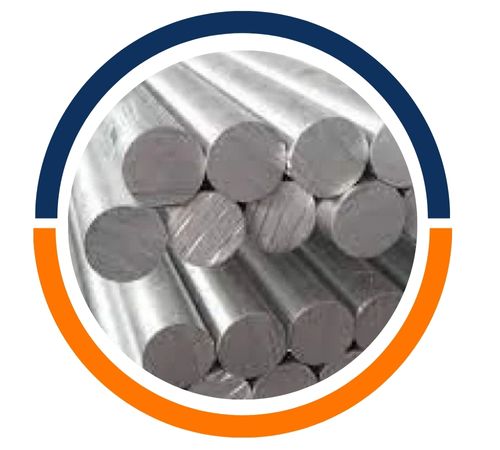

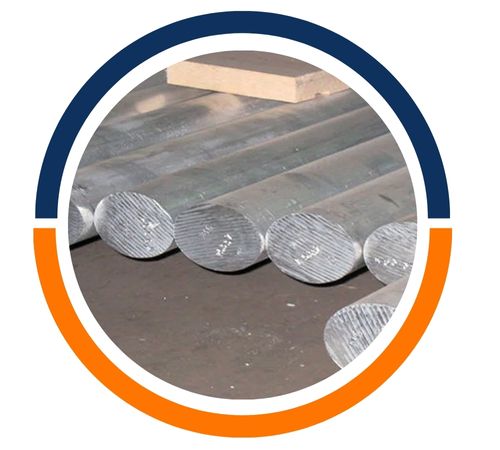

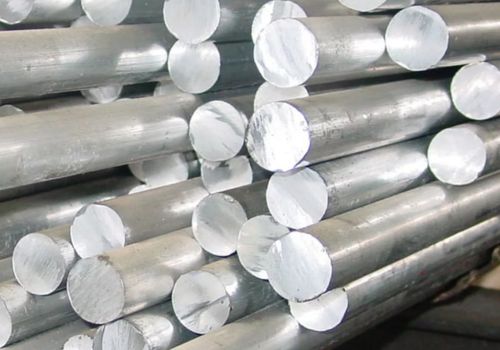

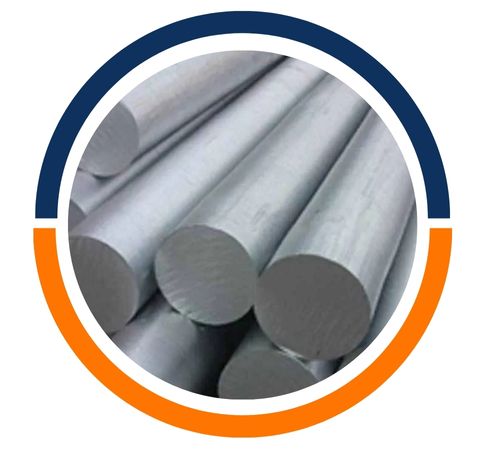

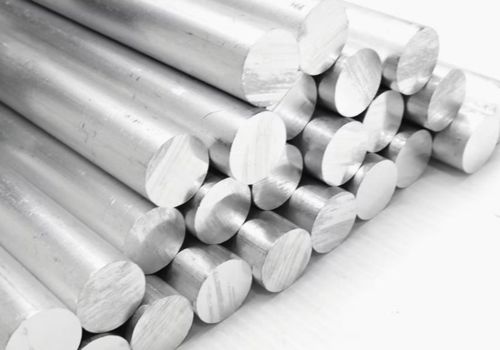

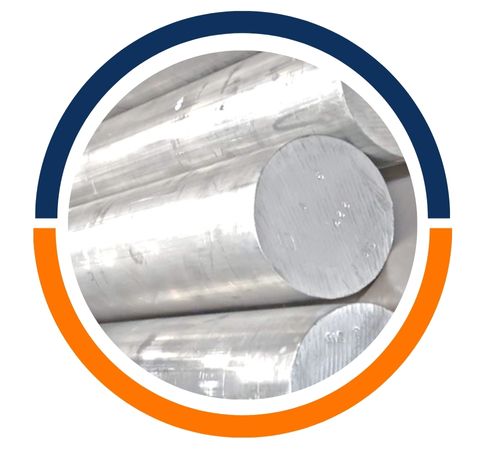

Chirag Aluminium stands out as a well-respected manufacturer and supplier of Aluminium 2017 Round Bars in India, based in Chennai and serving industries that require high-strength, precision-engineered materials. This heat-treatable alloy, primarily mixed with copper, boasts impressive mechanical properties and exceptional machinability. At Chirag Aluminium, the production of 2017 round bars employs cutting-edge techniques and heat treatment processes, guaranteeing consistent strength, a smooth surface finish, and precise dimensions. These bars are perfect for applications in aerospace, automotive, defense, and structural sectors where performance under stress and resistance to fatigue are essential.
As a reliable Aluminium 2017 Round Bars manufacturer in India, Chirag Aluminium provides bars in a variety of sizes and tempers, including T4 and T451, tailored to meet specific engineering needs. Typically, Aluminium 2017 contains between 3.5% to 4.5% copper, along with other elements like magnesium and manganese to boost strength and corrosion resistance. All bars are produced in line with international standards such as ASTM B211 and EN 573, and they undergo rigorous quality checks for tensile strength, elongation, hardness, and straightness. The alloy’s excellent machinability makes it ideal for components that require tight tolerances and a fine finish.
| Specifications | ASTM B221, B211, B565, B316, AMS 4121 2014 |
|---|---|
| Temper | T3, T4, T5, T6, T651, T6511 |
| Standard | ASTM, ASME, AMS, GB/T, JIS |
| Length | 1000-6000 |
| Size: | 5 mm To 500 mm |
| Diameter | 6-500 |
| Finish | Bright, Polish & Black |
| Type | Hot-Rolled (HR) / Cold-Rolled (CR) Sheet |
| Grade | Al | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others Each | Other Total |
| 2017 | Rem | 0.20-0.8 | 0.7 max | 3.5-4.5 | 0.40-1.0 | 0.40-0.8 | 0.10 max | 0.25 max | 0.15 max | 0.05 max | 0.15 max |
| Material | Condition | Tensile Strength (N/mm²) min | Yield Strength | Elongation in 4D % | ||
| ksi | Mpa | ksi | Mpa | |||
| 2017 | 2017-T4 Bar | 55 | 379 | 32 | 221 | 12 |
| STANDARD | UNS | WERKSTOFF NR. |
| Aluminium 2017 | A92017 | 3.1325 |
Chirag Aluminium’s Aluminium 2017 Round Bars find extensive use in rivets, aircraft fittings, structural frames, transportation components, and precision-machined parts. Their unique blend of high strength, toughness, and workability makes them a favored choice for critical load-bearing applications. Chirag Aluminium also offers a broad range of diameter options, with custom lengths and finishes available upon request. With a strong commitment to quality control, technical support, and timely delivery, they ensure customer satisfaction at every step.
| Modulus of elasticity N/mm² | Specific weight g/cm³ | Melting temperature °C | Linear expansion coefficient 1/10⁶K | Thermal conductivity W/mK | Electrical resistivity at 20°C – μΩ cm | Electrical conductivity% IACS | Dissolution potential V |
|---|---|---|---|---|---|---|---|
| 72.500 | 2.79 | 505-650 | 22.9 | 134 | 0-3.5 T4-5.1 | T4-34 | -0.69 |
| CD | Cold drawn | P | Polished |
| CG | Centreless ground | HF | Hot finished |
| BD | Bright drawn | SRE | Slit rolled edge |
| P&T | Peeled and turned | RT | Rough turned/peeled |
| CF | Cold finished | HRAP | Hot rolled annealed and pickled |
| ST | Smooth turned | PR | Peeled and reeled |
Yes, we offer custom sizes for Aluminium 2017 Round Bars to meet specific project needs. Our team at Chirag Aluminiun is committed to providing customized solutions for all your requirements. For more details, contact us at sales@chiragaluminium.co.in
Aluminum 2017 round bars are great for use in applications that require high strength and good machinability. Due to their high tensile strength and fatigue resistance, they are widely used in aerospace applications for aircraft structures, wing parts and fuselage panels In the automotive industry these rods are used for gears, shafts and engine parts. It is also used in construction applications such as bridge framing, where durability is required. In addition, aluminum 2017 round bars are suitable for construction equipment, fixtures and jigs, as well as defense and marine environments for high performance parts Heat treatment makes them suitable for demanding applications.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
