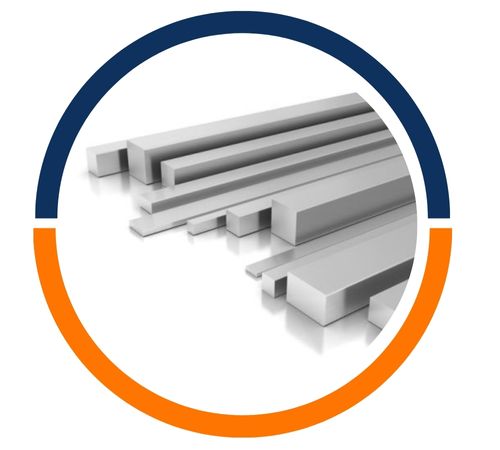

Chirag Aluminium is a reputable manufacturer and supplier of high-quality aluminium products located in Chennai, India. They specialize in providing customized solutions to meet a diverse range of industrial needs. One of their standout products, the Aluminium 5754 Flat Bars, is well-known for its impressive strength, durability, and outstanding resistance to corrosion. These flat bars are crafted to exact specifications using premium alloys and cutting-edge manufacturing processes. With a commitment to consistent quality, timely service, and a customer-centric approach, Chirag Aluminium delivers Aluminium 5754 Flat Bars to various sectors, including marine, automotive, construction, and general engineering, ensuring reliability and professionalism in both domestic and international markets.
The Aluminium 5754 Flat Bars are made from a magnesium-rich aluminium alloy, typically containing between 2.6% and 3.6% magnesium, along with small amounts of manganese and chromium. These bars are celebrated for their exceptional corrosion resistance, particularly in marine settings, as well as their excellent weldability and moderate to high strength. Depending on the temper—like O, H111, or H22—the tensile strength can range from 190 MPa to 330 MPa, with elongation values falling between 10% and 20%. The alloy’s mechanical stability, coupled with its resistance to seawater and industrial pollutants, makes it a top choice for structural applications where performance and durability are essential.
Standards : ASTM B221, B211, B565, B316, AMS 4121 5754
Temper :O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34,H36,H38,H111,H112,H114,H 116,H321
Standard : ASTM, ASME, AMS, GB/T, JIS
Length : 100 mm To 3000 mm Long & Above, Random, Fix & Cut Length or as per clients’ requirement
Size : 5 mm To 500 mm
Finish : Bright, Polish & Black
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
| Alloy | Mg | Mn | Si | Cu | Fe | Cr | Zn | Ti | Cu | Other | AI | |||||||||||
| 5754 | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | balance | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.60 | 3.60 | 0.0 | 0.50 | 0.0 | 0.40 | 0.0 | 0.40 | 0.0 | 0.30 | 0.0 | 0.20 | 0.0 | 0.15 | 0.0 | 0.10 | 0.0 | 0.05 | 0.0 | 0.15 | |||
| Alloy | Temper | Thermal conductivity | Coefficient of thermal expansion | Melting point | Elastic modulus | Electrical conductivity | |
|---|---|---|---|---|---|---|---|
| W/m*K | µm/(m*K) | Min | Max | KN/mm2 | %IACS | ||
| 5754 | H22 | 132 | 23,7 | 595 | 645 | 70 | 32,5 |
| 132 | 23,7 | 595 | 645 | 70 | 32,5 | ||
| 132 | 23,7 | 595 | 645 | 70 | 32,5 | ||
| 132 | 23,7 | 595 | 645 | 70 | 32,5 | ||
| 23,7 | 595 | 645 | 70 | ||||
| 132 | 23,7 | 595 | 645 | 70 | 32,5 | ||
| European Standard | GERMANY | UNS | WERKSTOFF NR. |
| AW-AlMg2.5 | Al-Mg.2 | A95754 | 3.3535 |
Chirag Aluminiun based in Chennai, India is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 5754 Flat Bars to meet specific project needs. Our team at Chirag Aluminiun is committed to providing customized solutions for all your requirements. For more details, contact us at sales@chiragaluminium.co.in
Aluminium 5754 Flat Bars find their way into a wide range of applications thanks to their strength, corrosion resistance, and ease of fabrication. In marine environments, they are used for structural supports, flooring, and bulkheads, thanks to their ability to endure saltwater exposure. The automotive industry utilizes them for chassis parts, brackets, and reinforcements, taking advantage of their lightweight yet strong properties. In construction, these flat bars are perfect for railings, framing, and façade systems. They also play a role in industrial fabrication, platforms, and welded assemblies. Plus, their recyclability and non-toxic nature make them an environmentally friendly choice.
