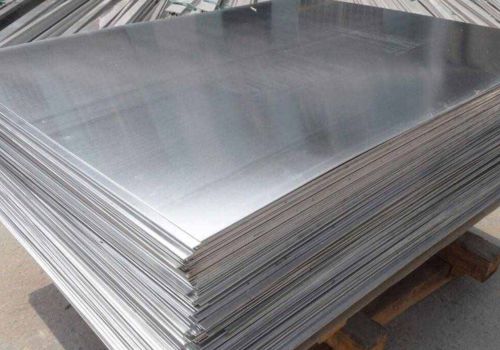

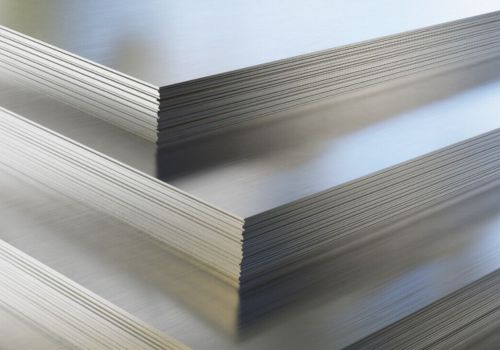

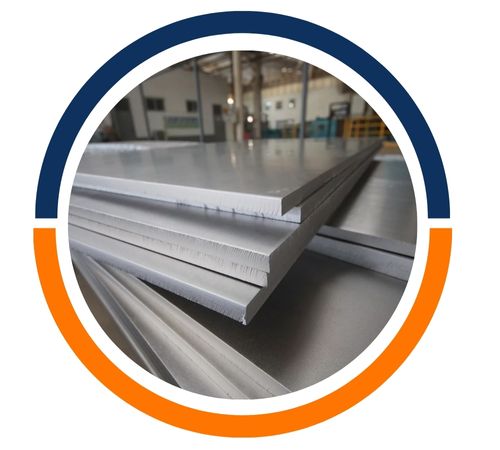

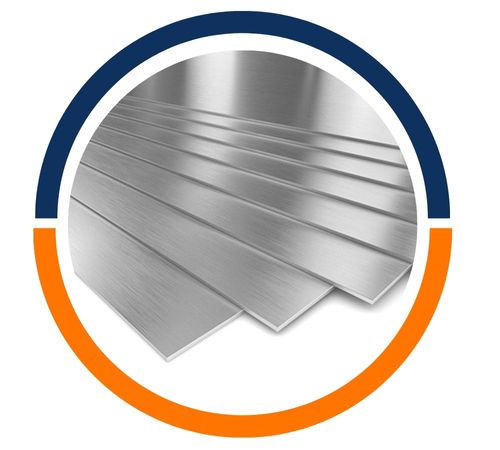

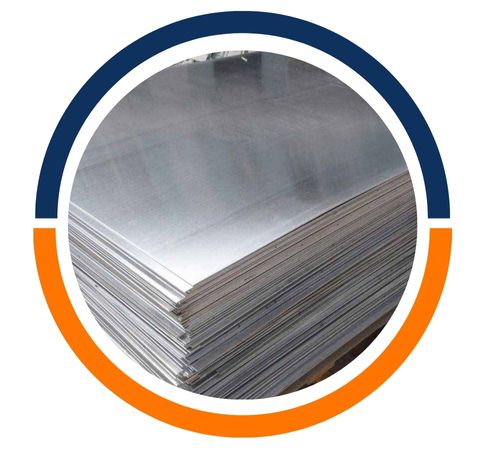

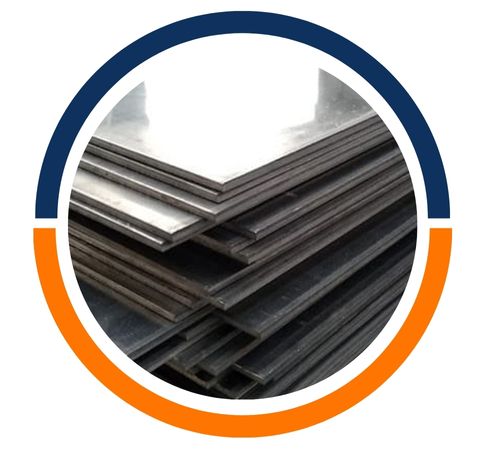

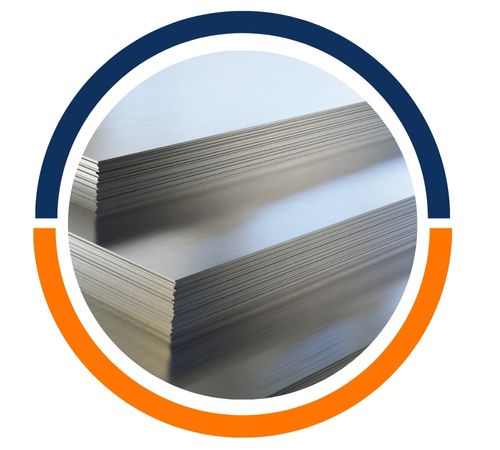

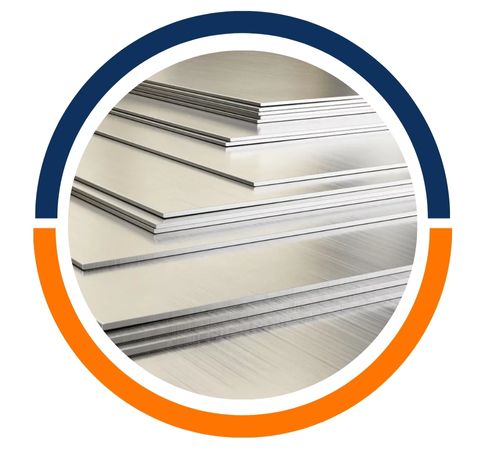

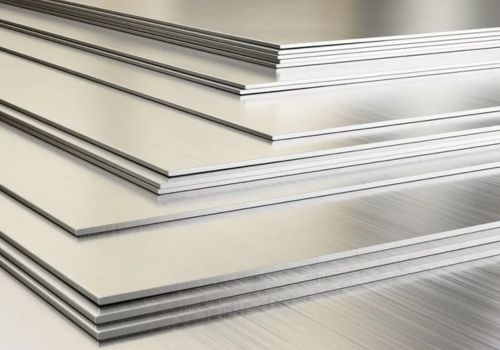

Chirag Aluminium is a well-respected manufacturer and supplier of Aluminium 2014 Sheets and Plates based in Chennai, India. They specialize in delivering high-strength products tailored for industries like aerospace, defense, automotive, and heavy engineering. Crafted from a top-notch aluminium-copper alloy, these sheets and plates are celebrated for their outstanding mechanical properties, excellent machinability, and impressive toughness. You’ll find Aluminium 2014 Sheets and Plates from Chirag Aluminium being utilized in aircraft structures, defense equipment, and precision engineering projects. With a strong focus on quality, precision, and timely delivery, the company has earned a solid reputation in the market.
These Aluminium 2014 Sheets and Plates primarily consist of an aluminium-copper alloy, with small amounts of manganese, magnesium, and silicon added to boost their strength and hardness. They showcase high tensile strength, remarkable fatigue resistance, and good machinability, making them ideal for components that face heavy stress. However, their corrosion resistance is moderate, so it’s usually a good idea to apply protective coatings, cladding, or anodizing. Lightweight yet robust, Aluminium 2014 Sheets and Plates can be easily fabricated and machined, and they’re fully recyclable, which aligns with eco-friendly practices.
Standards : ASTM B209 / ASME SB209
Temper : O, T3,T4, T6, T651
Thickness : 0.2-250
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Sheet/ Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
| Alloy | Si | Fe | Cu | Zn | Mn | Mg | Ti | Other | Cr | Ni | Others | Ti+Zr | Al |
| 2014 (min) (max) | 0.50 – 0.90 | 0.0 – 0.50 | 3.90 – 5.00 | 0.0 – 0.25 | 0.40 – 1.20 | 0.20 – 0.80 | 0.0 – 0.15 | 0.0 – 0.15 | 0.0 – 0.10 | 0.0 – 0.10 | 0.0 – 0.05 | 0.0 – 0.20 | Balance |
| Alloy | Temper | UTS (Mpa) | Yield Strength (Mpa) | Elongation (%) | ||
| – | – | Minimum | Maximum | Minimum | Maximum | A 50mm (Minimum) |
| EN AW-2014 | O | – | 250 | – | 135 | 10 |
| T4 | 370 | – | 230 | – | 11 | |
Chirag Aluminiun based in Chennai, India is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
| European Standard | BS (OLD) | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) | IS | Canadian |
| EN AW-2014 | HE15 | 3.1255 | A92014 | AlCu4SiMg | 2014 | AlCuSiMn | 24345 | B26S |
| Sizes (mm) | Theoretical Mass KG/Plate |
|---|---|
| 2000 X 1000 X 0.5 | 2500 X 1250 X 0.5 |
| 2000 X 1000 X 0.7 | 2500 X 1250 X 0.7 |
| 2000 X 1000 X 0.9 | 2500 X 1250 X 0.9 |
| 2000 X 1000 X 1.2 | 2500 X 1250 X 1.2 |
| 3000 X 1500 X 1.2 | 2000 X 1000 X 1.6 |
| 2500 X 1250 X 1.6 | 3000 X 1500 X 1.6 |
| 2000 X 1000 X 2.0 | 2500 X 1250 X 2.0 |
| 3000 X 1500 X 2.0 | 2500 X 1250 X 2.5 |
| 2.79 | 4.36 |
| 3.91 | 6.10 |
| 5.02 | 7.85 |
| 6.74 | 10.46 |
| 15.01 | 8.93 |
| 13.95 | 20.09 |
| 11.16 | 17.44 |
| 25.11 | 21.80 |
Yes, we offer custom sizes for Aluminium 2014 Sheets and Plates to meet specific project needs. Our team at Chirag Aluminiun is committed to providing customized solutions for all your requirements. For more details, contact us at sales@chiragaluminium.co.in
Across various industries that require high strength and durability, Aluminium 2014 Sheets and Plates are in high demand. In aerospace, they’re used in aircraft structures, wing components, and other stressed parts. The defense industry relies on them for precision tools, armored vehicles, and military gear. In the automotive sector, they find applications in engine parts, suspension systems, and heavy-duty frames. They’re also popular in general engineering for precision machining and load-bearing structures. Thanks to their excellent machinability, fatigue resistance, and superior mechanical strength, Aluminium 2014 Sheets and Plates are the go-to choice for aerospace, defense, automotive, and engineering applications.
