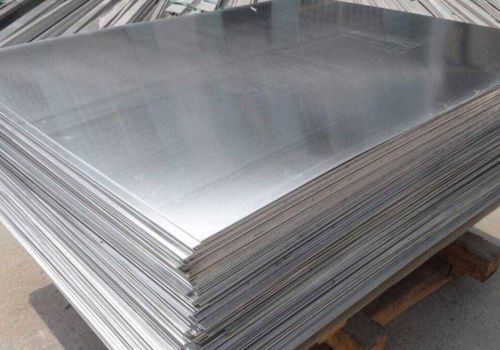

Chirag Aluminium has built a solid reputation as a leading manufacturer and supplier of Aluminium 5005 Sheets and Plates in Chennai, India. They pride themselves on delivering top-notch, corrosion-resistant products that cater to architectural, marine, and industrial needs. Crafted from high-grade aluminium-magnesium alloy, these sheets and plates are well-known for their stunning surface finish, exceptional weather resistance, and impressive weldability. You’ll find Aluminium 5005 Sheets and Plates from Chirag Aluminium being used extensively in roofing, cladding, facades, and various decorative projects. With a strong commitment to quality, precision, and timely delivery, the company has earned the trust of many in the industry.
These Aluminium 5005 Sheets and Plates are made from an aluminium-magnesium alloy that includes a touch of manganese, which boosts their corrosion resistance and mechanical strength. They stand out for their remarkable resistance to atmospheric corrosion, especially in marine and coastal settings. Offering moderate tensile strength, good ductility, and excellent forming and welding capabilities, they’re perfect for creating intricate shapes. Plus, they boast fantastic anodizing properties, resulting in a smooth, eye-catching finish that’s perfect for architectural and decorative applications. Lightweight yet durable, they’re also fully recyclable, making them a great choice for sustainable practices.
Standards : ASTM B209 / ASME SB209
Temper : O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34,H36,H38
Thickness : 0.2-250
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Sheet/ Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
|
Element |
% |
Element |
% |
|
Aluminium |
Balance |
Manganese |
0.20 max |
|
Magnesium |
0.50 – 1.10 |
Chromium |
0.10 max |
|
Silicon |
0.30max |
Zinc |
0.25 max |
|
Iron |
0.07 max |
Others, each |
0.05 max |
|
Copper |
0.20 max |
Others, total |
0.15 max |
|
Temper |
0.2% Proof Stress, MPa min† |
Tensile Strength, MPa |
Elongation % min‡ |
|
O (annealed) |
35 |
105 – 145 |
12 – 22 |
|
H12 |
95 |
125 – 165 |
2 – 8 |
|
H14 |
115 |
145 – 185 |
1 – 6 |
|
H16 |
135 |
165 – 205 |
1 – 3 |
|
H18 |
– |
> 185 |
1 – 3 |
|
H32 |
85 |
115 – 160 |
3 – 9 |
|
H34 |
105 |
135 – 180 |
2 – 7 |
|
H36 |
125 |
160 – 200 |
1 – 4 |
|
H38 |
– |
> 180 |
1 – 4 |
Chirag Aluminiun based in Chennai, India is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
| Standard | UNS | ISO | BS | DIN |
| 5005 | A95005 | AlMg1 | N41 | 3.3315 |
| Sizes (mm) | Theoretical Mass KG/Plate |
|---|---|
| 2000 X 1000 X 0.5 | 2500 X 1250 X 0.5 |
| 2000 X 1000 X 0.7 | 2500 X 1250 X 0.7 |
| 2000 X 1000 X 0.9 | 2500 X 1250 X 0.9 |
| 2000 X 1000 X 1.2 | 2500 X 1250 X 1.2 |
| 3000 X 1500 X 1.2 | 2000 X 1000 X 1.6 |
| 2500 X 1250 X 1.6 | 3000 X 1500 X 1.6 |
| 2000 X 1000 X 2.0 | 2500 X 1250 X 2.0 |
| 3000 X 1500 X 2.0 | 2500 X 1250 X 2.5 |
| 2.79 | 4.36 |
| 3.91 | 6.10 |
| 5.02 | 7.85 |
| 6.74 | 10.46 |
| 15.01 | 8.93 |
| 13.95 | 20.09 |
| 11.16 | 17.44 |
| 25.11 | 21.80 |
Yes, we offer custom sizes for Aluminium 5005 Sheets and Plates to meet specific project needs. Our team at Chirag Aluminiun is committed to providing customized solutions for all your requirements. For more details, contact us at sales@chiragaluminium.co.in
Aluminium 5005 Sheets and Plates find their way into various industries that demand durability, aesthetics, and corrosion resistance. In architecture, they’re commonly used for roofing, wall cladding, curtain walls, and facades, thanks to their beautiful anodized finish. In the transportation sector, they serve as vehicle body panels and decorative trims. Industrial uses include storage tanks, chemical equipment, and marine components, where resistance to moisture and saltwater is essential. Their outstanding combination of corrosion resistance, anodizing capabilities, and formability makes Aluminium 5005 Sheets and Plates a go-to option for architectural, decorative, and marine applications.
