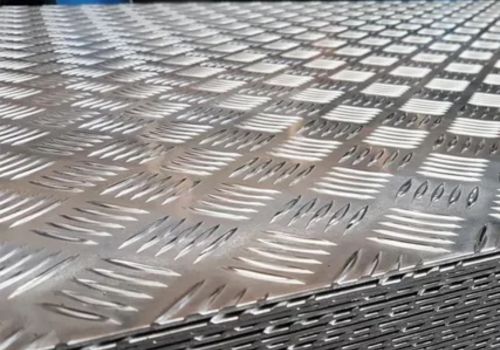

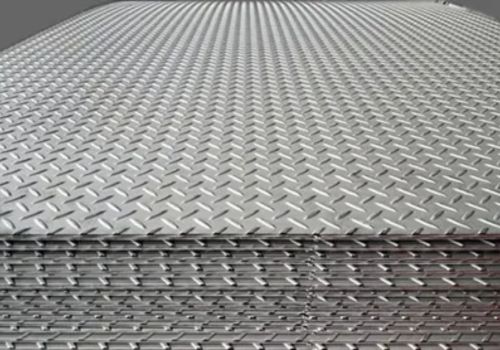

Chirag Aluminium, operating from Chennai, India, is a reliable manufacturer and exporter of top-notch aluminium products, dedicated to catering to varied industrial needs with accuracy and consistency. Among their high-end products, Aluminium 6063 Chequered Plates are particularly sought for their superior strength, resistance against corrosion, and light weight. Engineered to have a textured surface for increased grip and security, these plates are both functional and pleasing to the eye and can be used in various applications. Through sophisticated manufacturing processes and rigorous quality control, Chirag Aluminium ensures that its every product offers unmatched durability and performance that serves the changing needs of industries globally.
Aluminium 6063 Chequered Plates consist of about 98% aluminium with alloying components such as 0.45–0.9% magnesium (Mg) and 0.2–0.6% silicon (Si), contributing to increased corrosion resistance and strength. In the T6 temper, the alloy exhibits a tensile strength of 145–186 MPa and a yield strength of approximately 110 MPa, accompanied by elongation of 8–12% and Brinell hardness of around 60 HB. Light in weight, weldable, and very machinable, 6063 chequered plates provide strength and structural stability alike, making them a viable option for challenging industrial and architectural use.
Standards : ASTM B209 / ASME SB209
Temper : O, T3, T4, T5, T6, T651, T6511
Thickness : 0.3-600
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Chequered Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Chequered Plate
| UNS | EN | DIN | ISO | BS (OLD) | USA | WNR |
| A96063 | AW-AlMg0,7Si EN AW-6063 | AlMgSi0.5 | AlMg0,7Si | HE9 | AA6063 | 3.32206 |
| Cu | Si | Fe | Mn | Mg | Zn | Cr | Ti | Other Each | Others Total | Al |
| .10 (max) | .20/.60 | .35 (max) | .10 (max) | .45/.90 | .10 (max) | .10 (max) | .10 (max) | .05 | .015 | Remainder |
| Tensile Strength (psi) | Yield Strength (psi) | Elongation (% in 2″) | Brinell Hardness |
| 27,000 | 21,000 | 12 | 60 |
Chirag Aluminiun based in Chennai, India is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 6063 Chequered Plates to meet specific project needs. Our team at Chirag Aluminiun is committed to providing customized solutions for all your requirements. For more details, contact us at sales@chiragaluminium.co.in
Aluminium 6063 Chequered Plates are used extensively in industries where safety, durability, and corrosion resistance are priorities. They are widely utilized in building construction for non-slip flooring in stairways, ramps, and walkways to provide safety in high-traffic environments. In transit, they are used as floorings for vehicles, beds for trucks, and step treads for buses, offering skid resistance and long-term toughness. They are also favored in building construction works like wall cladding, panels, and ornamentation due to their cosmetic finish. They are used widely in maritime environments for deck and platform use due to their saltwater resistance, which provides both functional and aesthetic appeal.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
