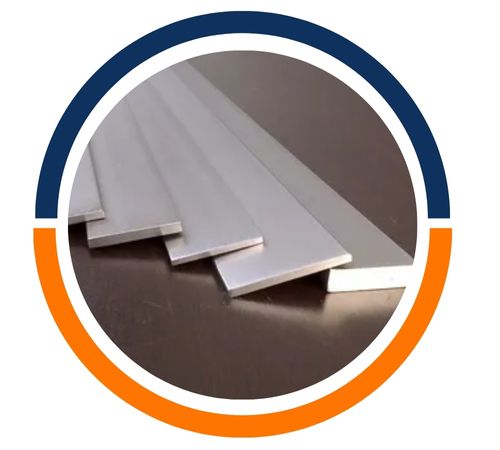

Chirag Aluminium is a well-respected manufacturer and supplier of Aluminium 1050 Bars based in Chennai, India. They’re known for delivering top-notch products that boast impressive corrosion resistance, high ductility, and excellent conductivity. Aluminium 1050 is part of the commercially pure aluminium series, containing 99.5% pure aluminium, which makes it incredibly workable, lightweight, and easy to shape. These bars are popular in various fields, including architecture, electrical work, chemical processing, and decorative projects, where a strong yet lightweight material is crucial. With a strong focus on quality, precision, and timely delivery, Chirag Aluminium has established itself as a dependable source for Aluminium 1050 Bars.
Aluminium 1050 Bars, made up of 99.5% pure aluminium, are known for their remarkable resistance to both atmospheric and chemical corrosion. They provide excellent electrical and thermal conductivity, good machinability, and impressive reflectivity. While their tensile strength may not match that of alloyed grades, they are highly ductile, easy to weld, and perfect for anodizing or polishing, which enhances both their functionality and appearance. Being lightweight, recyclable, and cost-effective, Aluminium 1050 Bars are also a sustainable choice for the environment.
Standards : ASTM B221, B211, B565, B316, AMS 4121 2014
Temper : O
Standard : ASTM, ASME, AMS, GB/T, JIS
Length : 1000-6000
Diameter : 6-150
Finish : Bright, Polish & Black
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
| Alloy (ISS) | Equivalent alloy (A.A) | Copper | Magnesium | Silicon | Iron | Managanese Others* (Total) | Remarks | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Old | New | U.S.A | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Max | Max. | Aluminum 99.0% Min. | ||
| 1 B | 19500 | 1050 | — | 0.05 | — | — | — | 0.30 | 0.4 | — | 0.05 | 0.1 | Aluminum 99.5% Min. | ||
| Alloy | Temper | UTS (Mpa) | Yield Strength (Mpa) | Elongation (%) | ||
|---|---|---|---|---|---|---|
| Minimum | Maximum | Minimum | Maximum | A 50mm (Minimum) | ||
| EN AW-1050 A | F | 60 | – | 20 | – | 23 |
| O | 60 | 95 | 20 | – | 23 | |
| European Standard | BS (OLD) | USA (AA) | GERMANY (DIN) | ISO | IS | Canadian |
|---|---|---|---|---|---|---|
| EN AW-1050 A | 1E | 1050 | Al99.5 | Al99.5 | 19500, 19501 | 1 S |
Chirag Aluminiun based in Chennai, India is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
| Diameter | Weight |
|---|---|
| 6 mm | 0,076 Kg/m |
| 7 mm | 0,104 Kg/m |
| 8 mm | 0,136 Kg/m |
| 9 mm | 0,172 Kg/m |
| 9,5 mm | 0,191 Kg/m |
| 10 mm | 0,212 Kg/m |
| 11 mm | 0,257 Kg/m |
| 12 mm | 0,305 Kg/m |
| 12,5 mm | 0,331 Kg/m |
| 13 mm | 0,358 Kg/m |
| 14 mm | 0,416 Kg/m |
| 16 mm | 0,543 Kg/m |
| 16,5 mm | 0,577 Kg/m |
| 18 mm | 0,687 Kg/m |
| 19 mm | 0,766 Kg/m |
| 20 mm | 0,848 Kg/m |
| 22 mm | 1,026 Kg/m |
| 25 mm | 1,325 Kg/m |
| 28 mm | 1,663 Kg/m |
| 30 mm | 1,909 Kg/m |
| 31 mm | 2,038 Kg/m |
| 32 mm | 2,171 Kg/m |
| 35 mm | 2,598 Kg/m |
| 38 mm | 3,062 Kg/m |
| 40 mm | 3,393 Kg/m |
| 45 mm | 4,294 Kg/m |
| 50 mm | 5,301 Kg/m |
| 55 mm | 6,415 Kg/m |
| 60 mm | 7,634 Kg/m |
| 65 mm | 8,959 Kg/m |
| 70 mm | 10,391 Kg/m |
| 75 mm | 11,928 Kg/m |
| 80 mm | 13,572 Kg/m |
| 90 mm | 17,177 Kg/m |
| 100 mm | 21,206 Kg/m |
| 105 mm | 23,379 Kg/m |
| 110 mm | 25,659 Kg/m |
| 120 mm | 30,536 Kg/m |
| 127 mm | 34,203 Kg/m |
| 130 mm | 35,838 Kg/m |
| 140 mm | 41,563 Kg/m |
| 150 mm | 47,713 Kg/m |
| 180 mm | 68,707 Kg/m |
| 200 mm | 84,823 Kg/m |
Yes, we offer custom sizes for Aluminium 1050 Bars to meet specific project needs. Our team at Chirag Aluminiun is committed to providing customized solutions for all your requirements. For more details, contact us at sales@chiragaluminium.co.in
These bars are utilized across a variety of industries thanks to their versatility and performance. In the electrical sector, they’re found in conductors, bus bars, and transformer components. In construction and architecture, they’re used for roofing, cladding, framing, and decorative elements. The food and chemical industries depend on them for utensils, kitchenware, processing machinery, and storage tanks due to their non-toxic properties. Their reflective qualities make them ideal for signage, lighting, and decorative applications. With a perfect blend of durability, workability, and sustainability, Aluminium 1050 Bars are an excellent option for both industrial and commercial uses.
